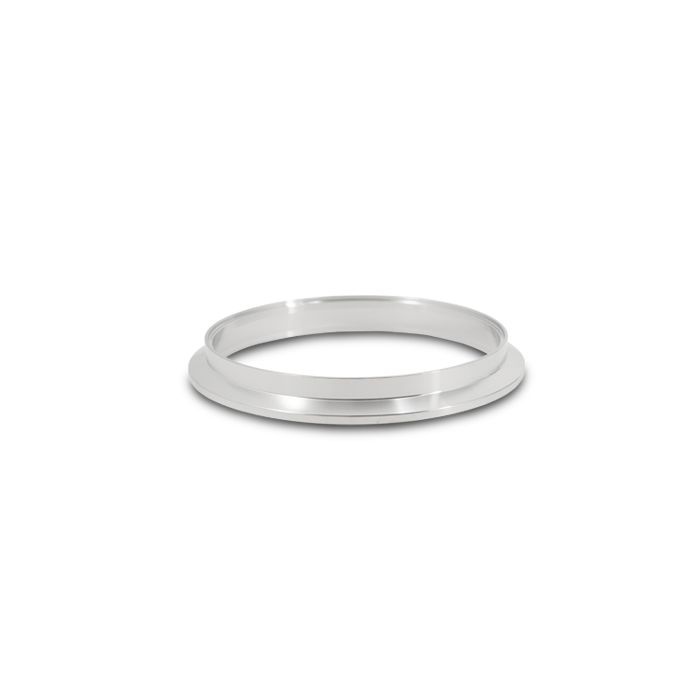

Vibrant Performance – 19866 – V-Band Turbo Outlet Flange for Garrett GTX5533R T6 Turbo

Vibrant Performance stainless steel turbo flanges are constructed entirely from T304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

Additional Attributes:

GTIN: 00690092169640
Add-On: N/A
Apex Width: 3.191
Centering Ring Male Diameter Height: 3
Centering Ring Male Diameter: 120.75
Flange O.D.: 131
Material: 304 Stainless Steel
Port I.D.: 111.3
Product Group: Turbine Outlet Flanges
Prop 65 Yes/No: No
Thickness: 17
Tube Recess Depth: 2
Tube Recess I.D.: 4

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 10.63 x 7.08 x 0.75 inches
Weight: 0.46 PG
