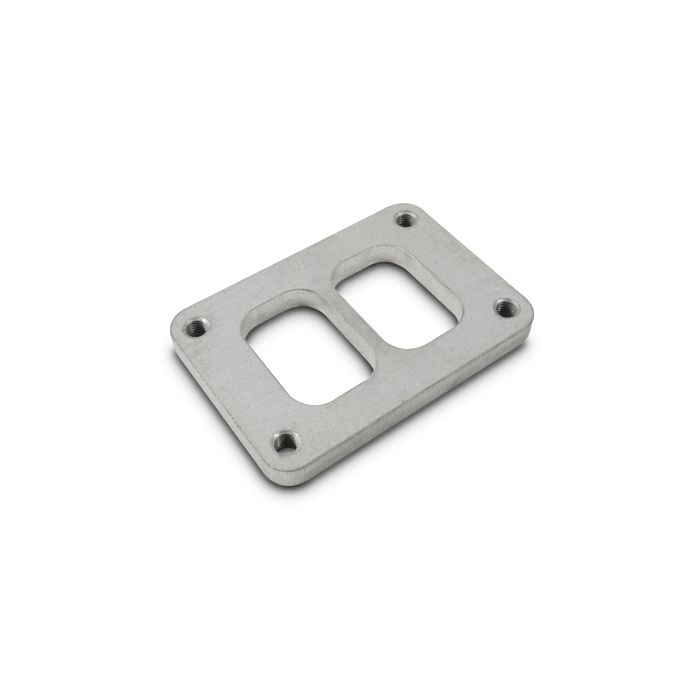

Vibrant Performance – 1443 – T06 Turbo Inlet Flange (Divided Inlet) – 1/2 in. thick

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

Additional Attributes:

GTIN: 00690092180256
Add-On: N/A
Bolt Hole Center to Center Height: 69.85
Bolt Hole Center to Center Width: 114.3
Bolt Hole Thread Size: M10 x 1.5
Material: 304 Stainless Steel
Overall Height: 91.9
Overall Port Width: 87.4
Overall Width: 136.7
Port Height: 58.85
Port Width: 40.15
Product Group: Turbine Inlet Flanges
Prop 65 Yes/No: No
Thickness: 0.5

Extended Information:

Emissions : 4
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 9.49 x 7.48 x 0.51 inches
Weight: 1.79 PG
