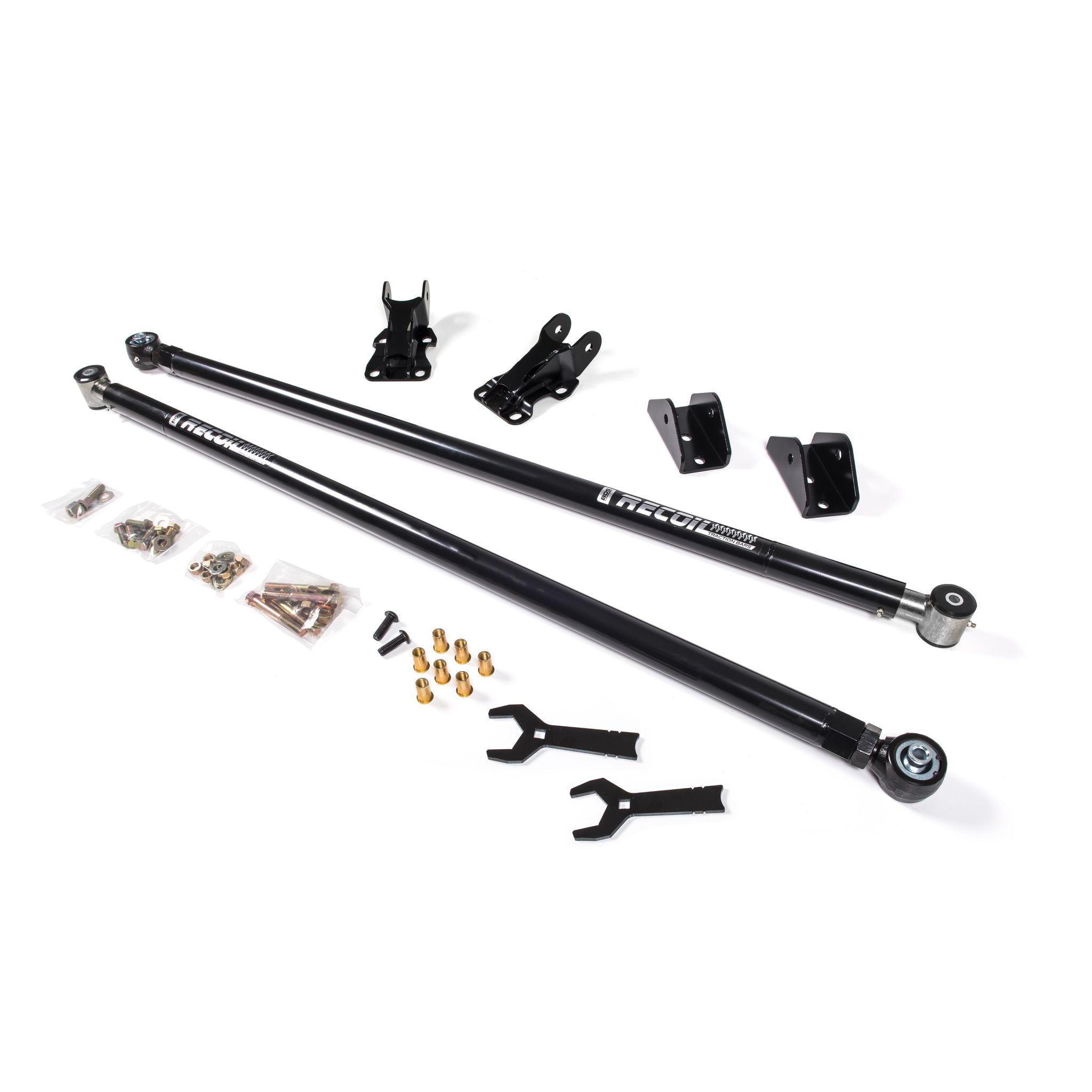

Recoil Traction Bar Mounting Kit – Ford F150 (04-20) 4WD

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS’s ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank a single sided snap ring and 1-piece flex ball the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

Additional Attributes:

GTIN: 00711745604308
Installation Time: 3-4 Hrs
Lift Height: 0_6
Material: Steel
Pvg Product Status: Active

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each:
Package UOM:
Dimension: 20.5000 x 8.5000 x 4.5000 inches
Weight: 19.7500 PG
