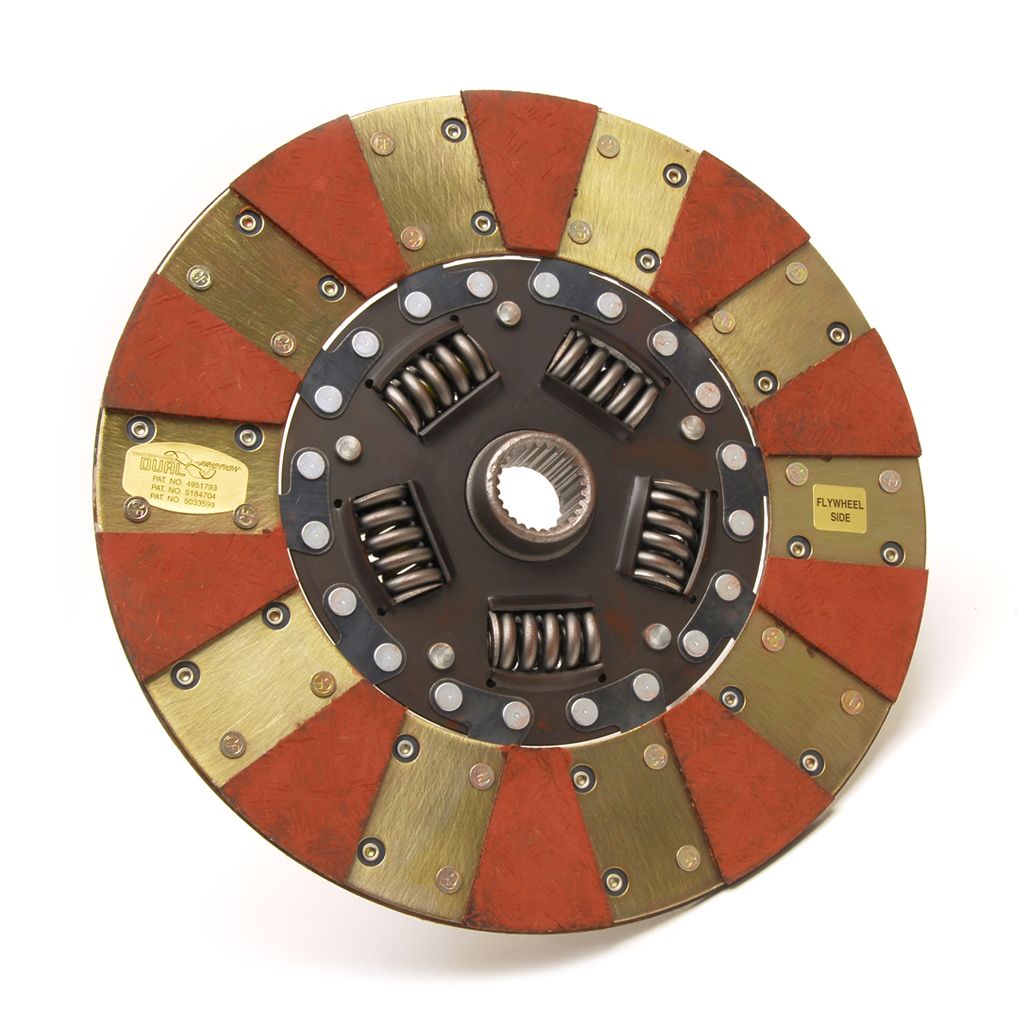

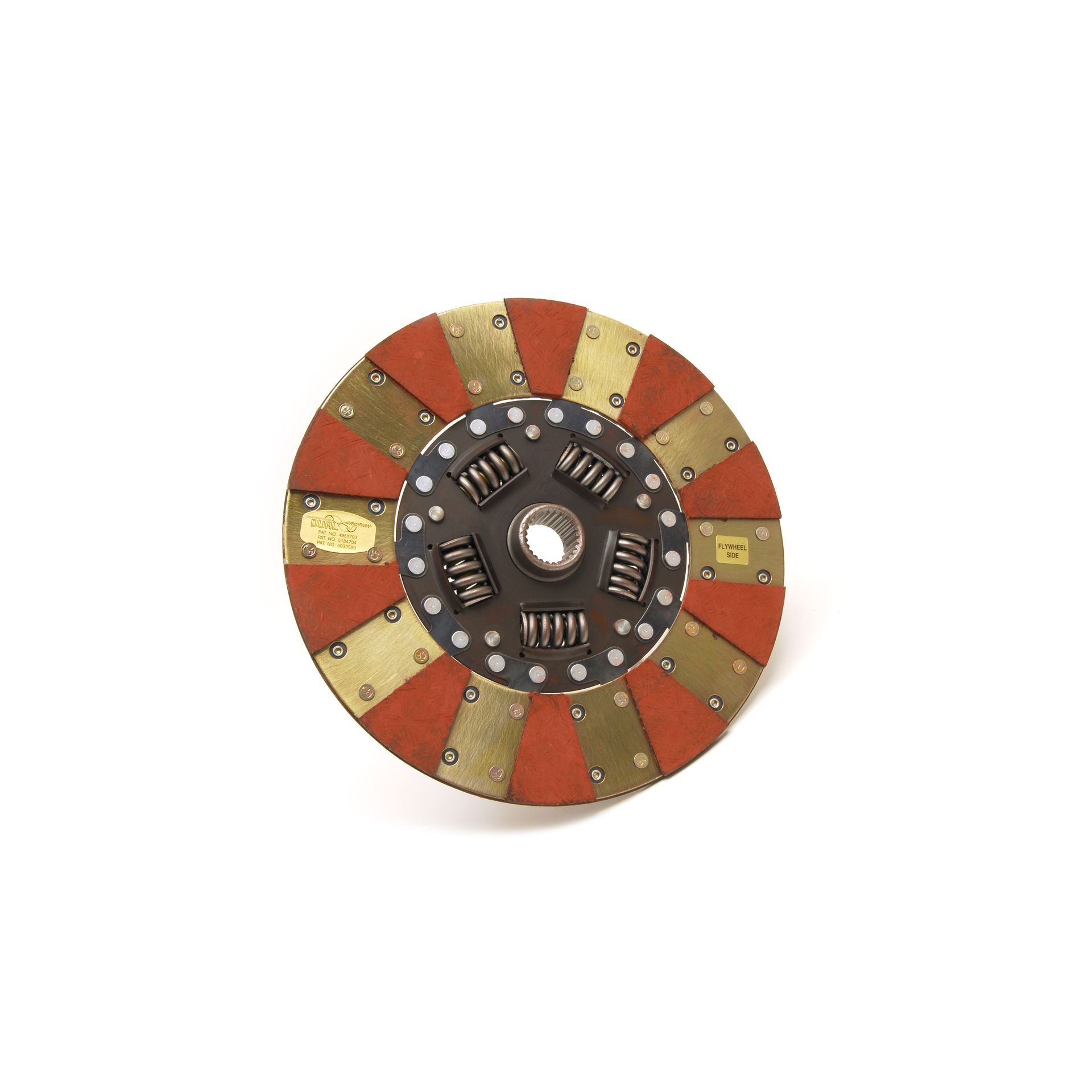

PN: DF381039 – Dual Friction, Clutch Friction Disc

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.

Additional Attributes:

GTIN: 00788442027563
California Proposition 65: WARNING – includes Nickel – cancer. www.P65Warnings.ca.gov.
Clutch Disc Diameter: 11
Clutch Disc Diameter: 279.4
Disc Material1: Organic/Carbon Composite
Disc Type Sprung Solid2: Sprung
Disc Type4: Full face/Segmented face
Input Shaft Diameter0: 1-1/8
Input Spline Quantity1: 26
Inside Diameter of Friction Surface7: 6.490
Inside Diameter of Friction Surface8: 164.8
Material3: Full Face and Segmented Organic Friction
Out of Package Weight: 4.78

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 14 x 2 inches
Weight: 5.33 PG

PDF:

DF381039
