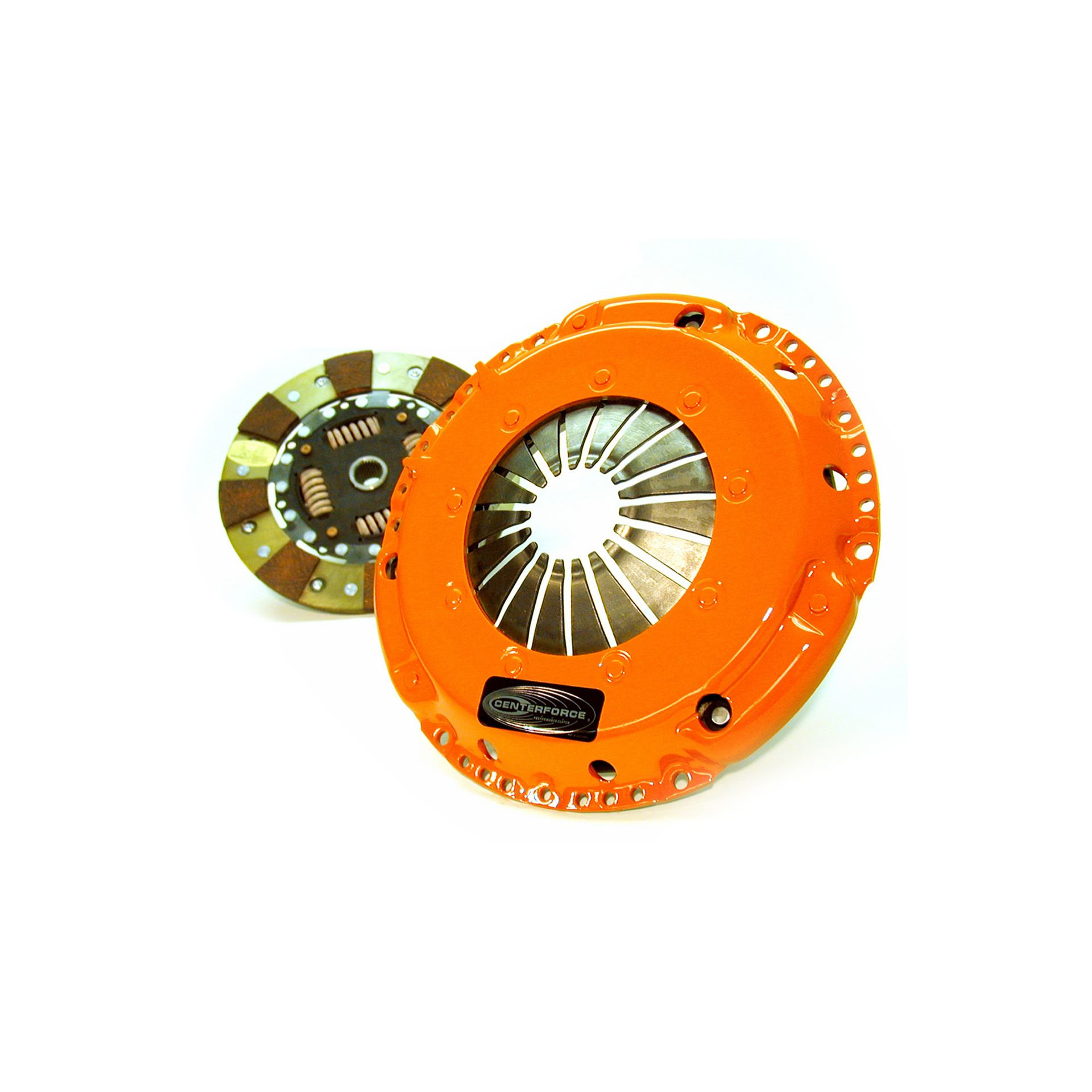

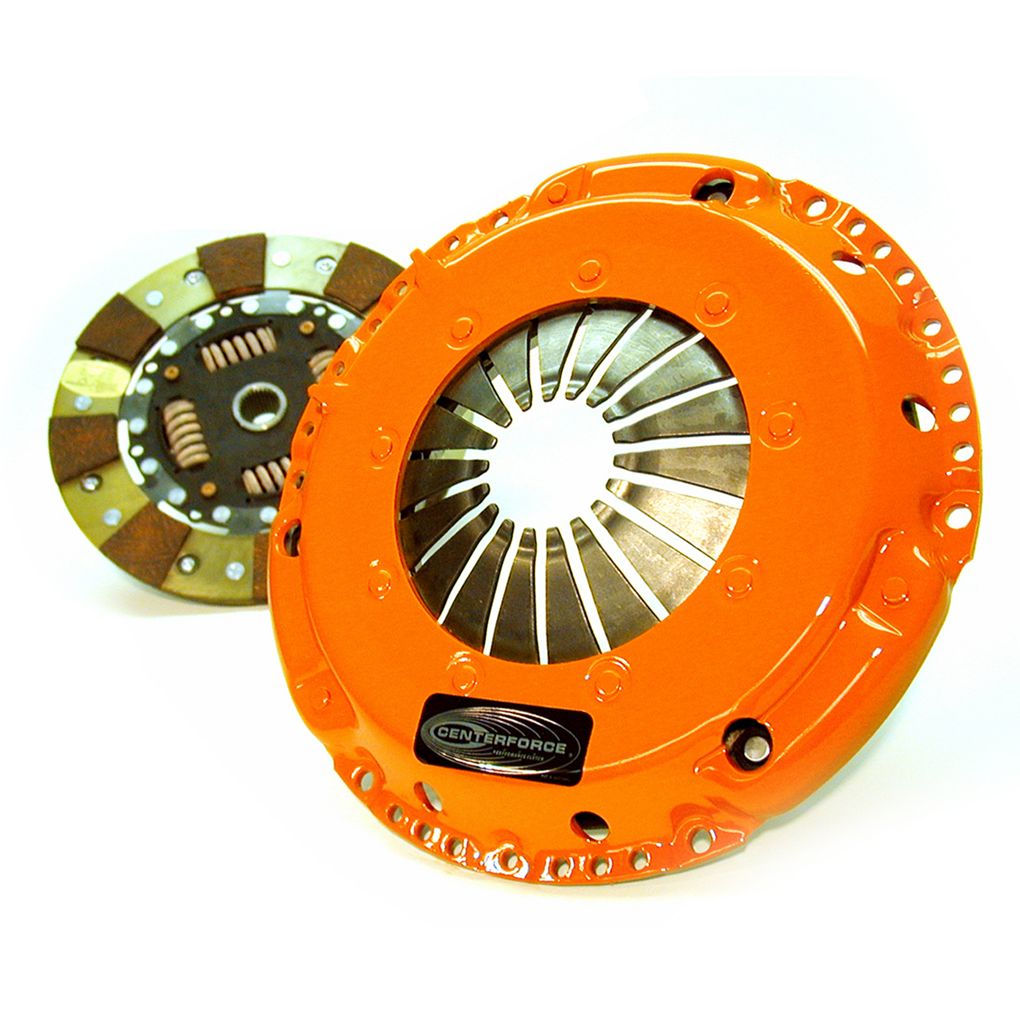

PN: DF023052 – Dual Friction, Clutch Pressure Plate and Disc Set

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Additional Attributes:

GTIN: 00788442015997
California Proposition 65: WARNING – includes Nickel – cancer. www.P65Warnings.ca.gov.
Clutch Disc Diameter: 9
Clutch Disc Diameter: 228
Counterweight Assist5: No
Disc Material3: Organic/Carbon Composite
Disc Type Sprung Solid2: Sprung
Disc Type6: Full face/Segmented face
Flywheel Step4: -.488
Input Shaft Diameter1: 7/8
Input Spline Quantity2: 28
Material4: Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
Torque Capacity: 366

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Discontinued

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 14 x 4 inches
Weight: 14.66 PG

PDF:

DF023052
