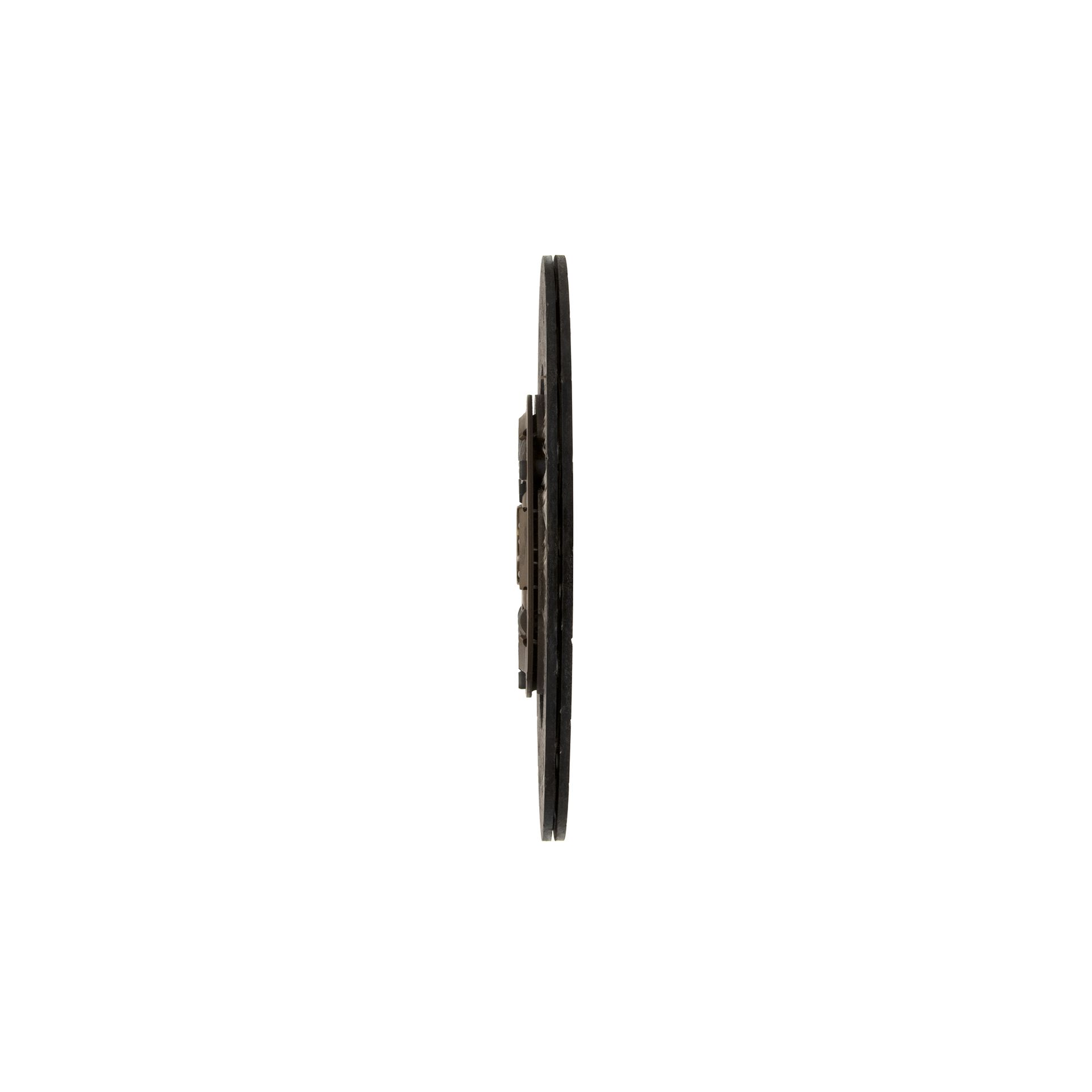

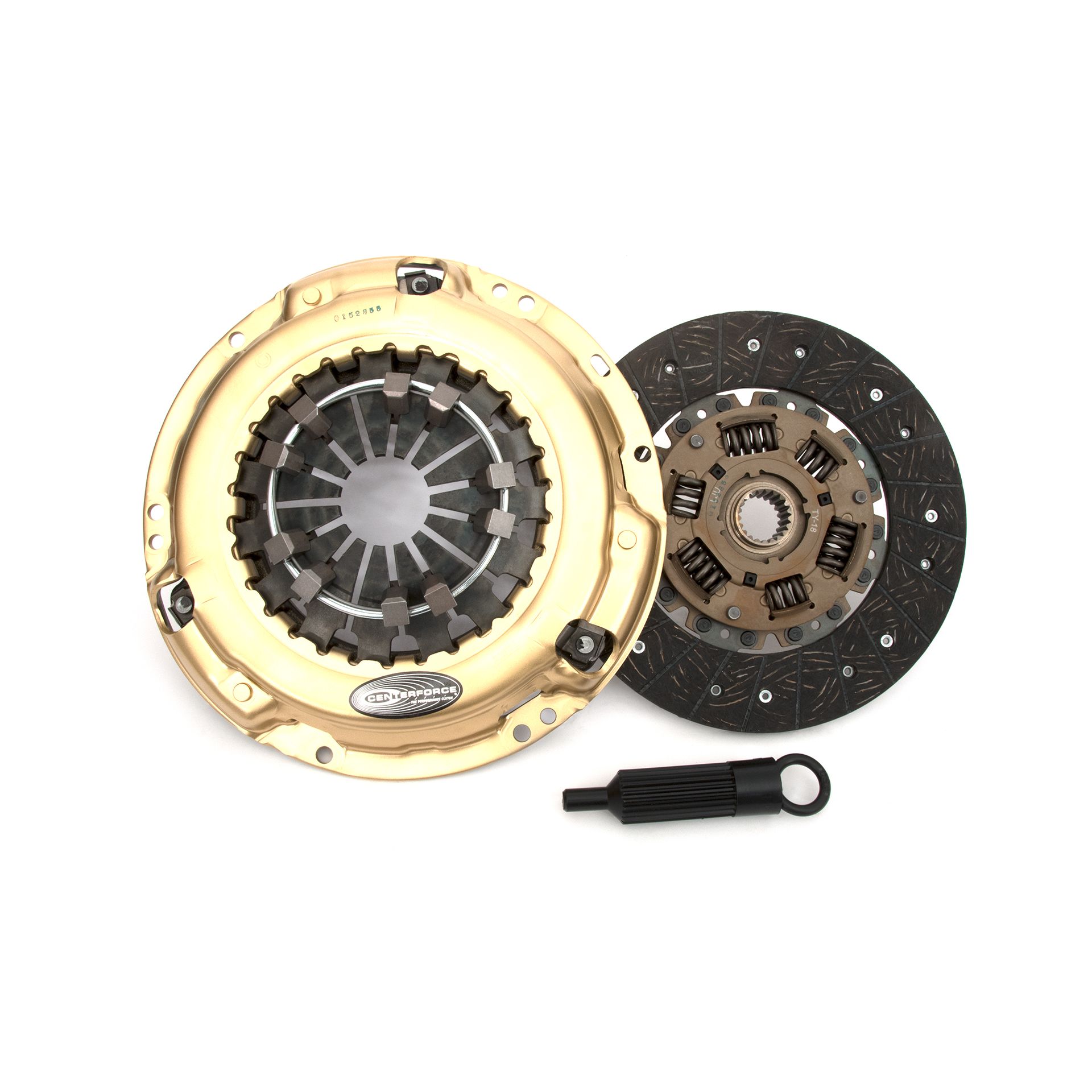

PN: CF110501 – Centerforce I, Clutch Pressure Plate and Disc Set

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Additional Attributes:

GTIN: 00788442013559
Alignment Tool Included9: Yes
California Proposition 65: WARNING – includes Nickel – cancer. www.P65Warnings.ca.gov.
Clutch Bolt Pattern4: 12
Clutch Disc Diameter: 9-1/4
Clutch Disc Diameter: 236
Counterweight Assist5: YES
Disc Material3: Organic
Disc Type Sprung Solid2: Sprung
Disc Type6: Full face
Flywheel Step4: 0.018
Input Shaft Diameter1: 1-1/8
Input Spline Quantity2: 21
Material4: Cast Iron Pressure Plate / Organic Friction
Torque Capacity: 309

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 14 x 4 inches
Weight: 15.6 PG

PDF:

CF110501
