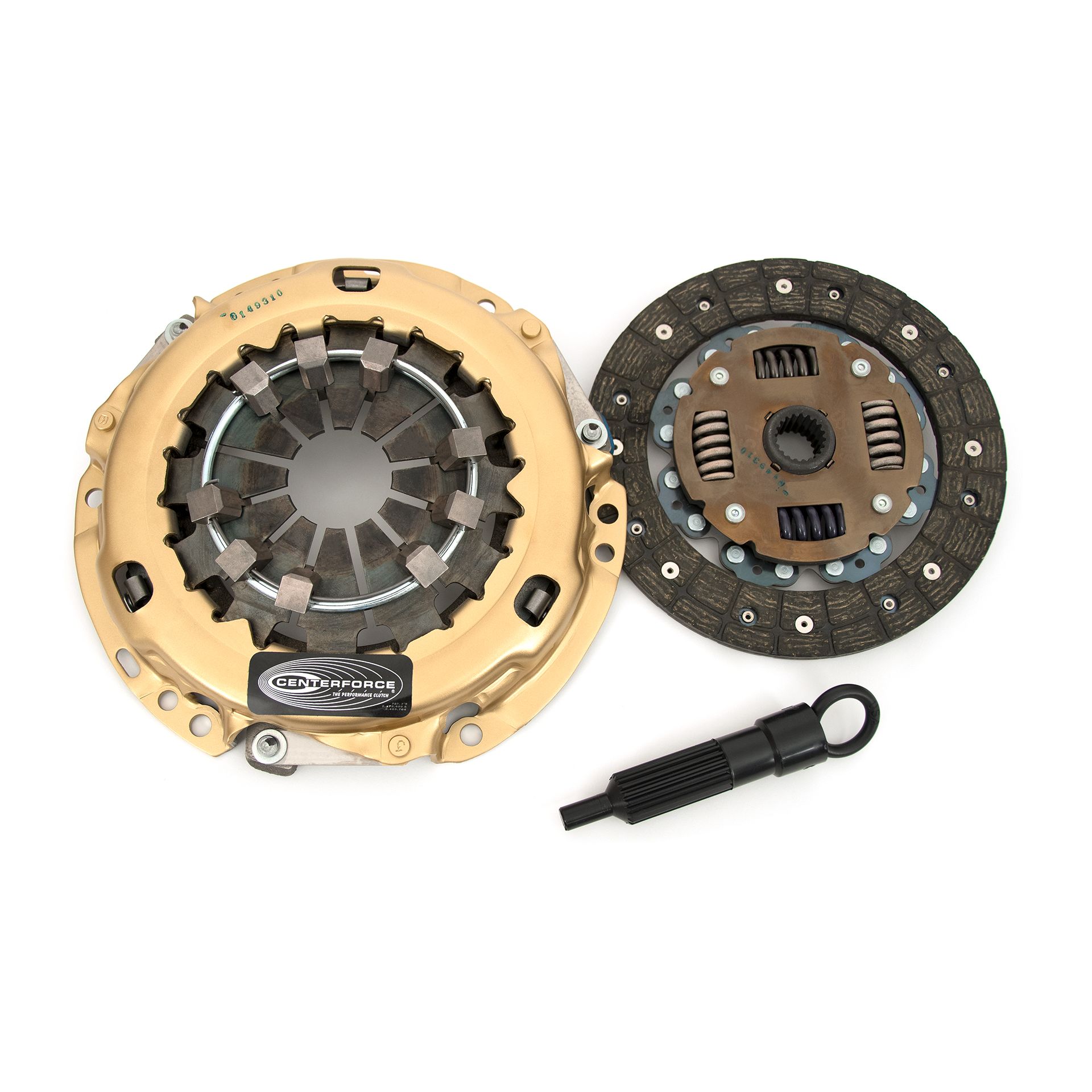

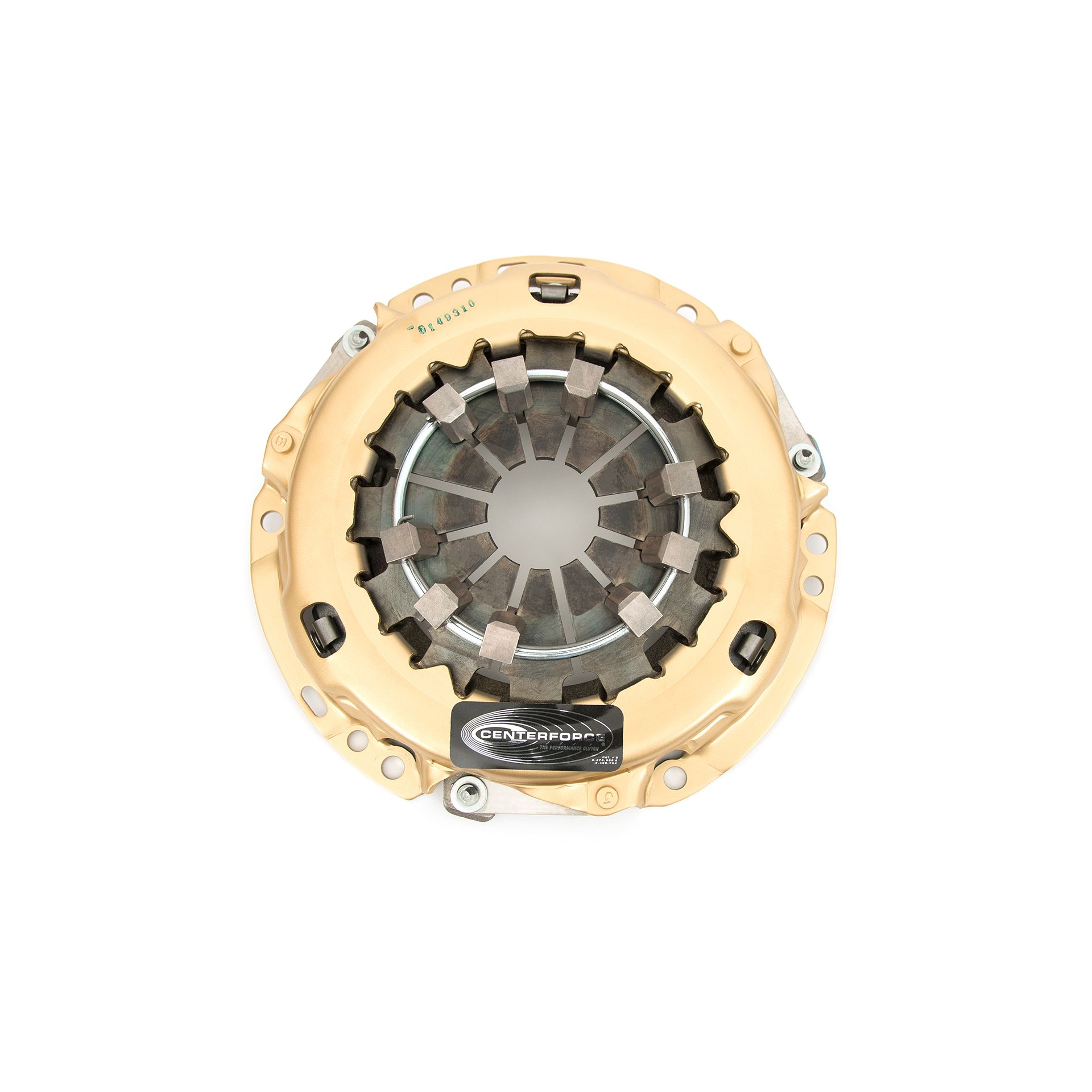

PN: CF009512 – Centerforce I, Clutch Pressure Plate and Disc Set

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Additional Attributes:

GTIN: 00788442012996
Alignment Tool Included9: Yes
California Proposition 65: WARNING – includes Nickel – cancer. www.P65Warnings.ca.gov.
Clutch Disc Diameter: 7-1/2
Clutch Disc Diameter: 190
Counterweight Assist5: YES
Disc Material3: Organic
Disc Type Sprung Solid2: Sprung
Disc Type6: Full face
Flywheel Step4: -0.090
Input Shaft Diameter1: 7/8
Input Spline Quantity2: 20
Material4: Cast Iron Pressure Plate / Organic Friction
Torque Capacity: 157

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Superseded

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14 x 14 x 4 inches
Weight: 9.85 PG

PDF:

CF009512
