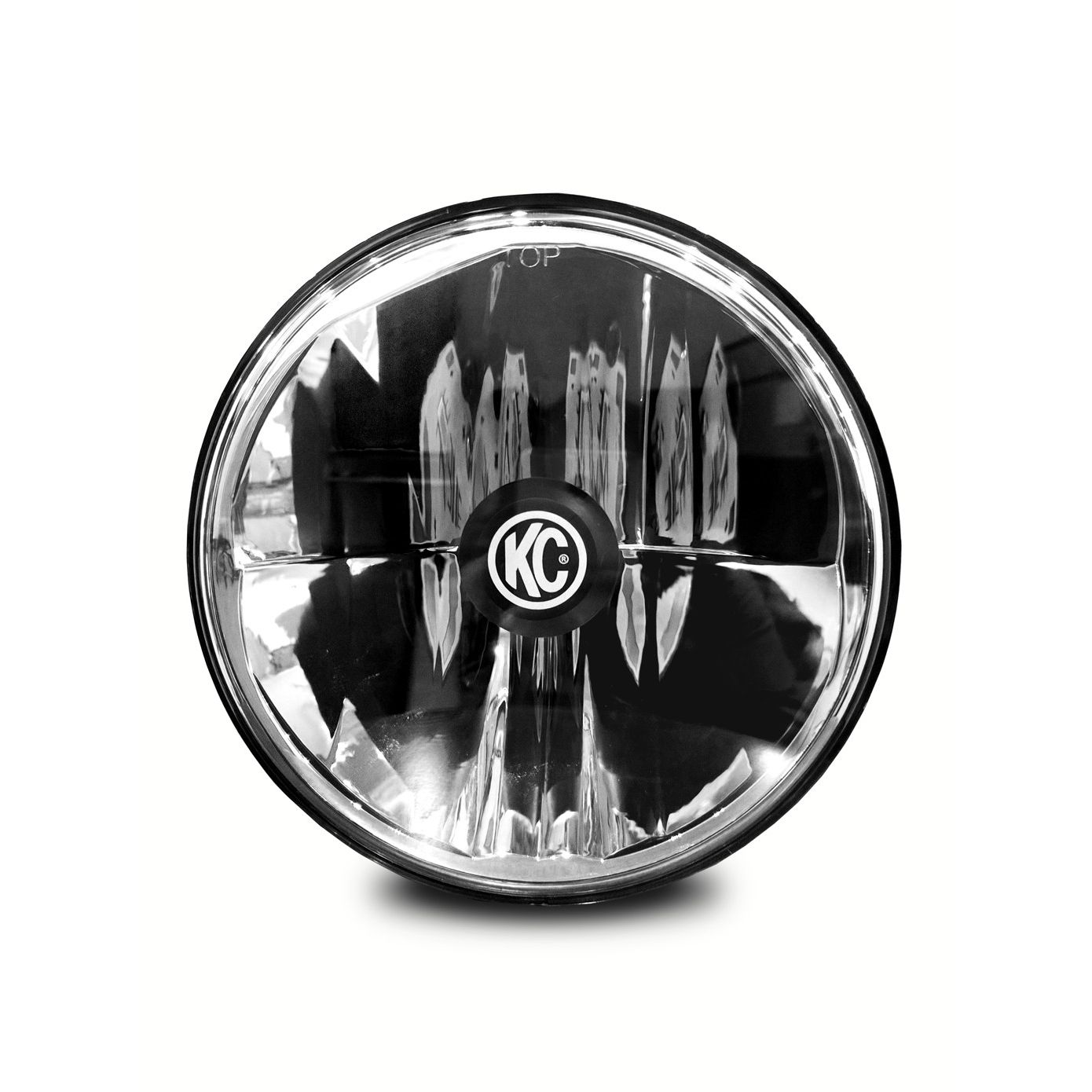

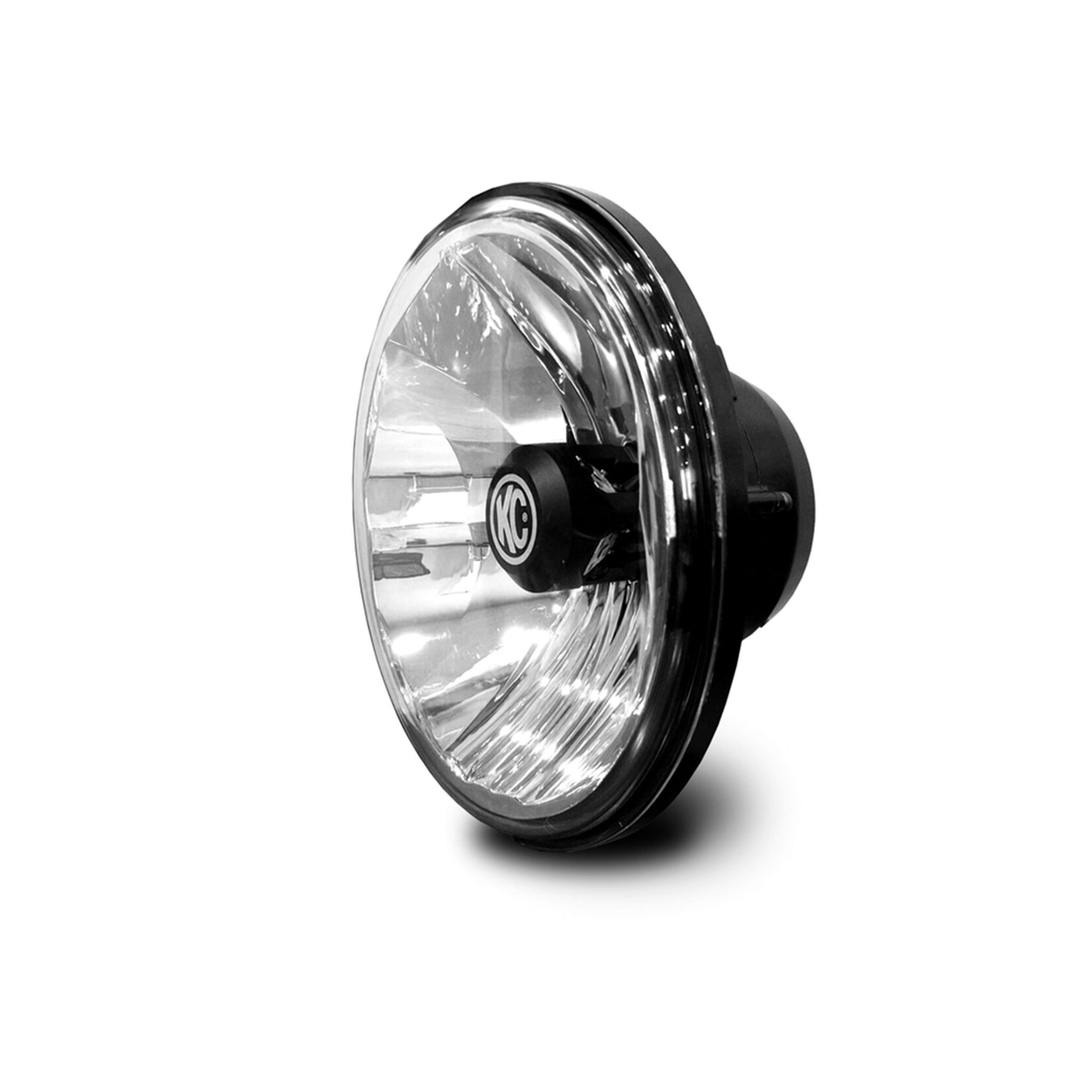

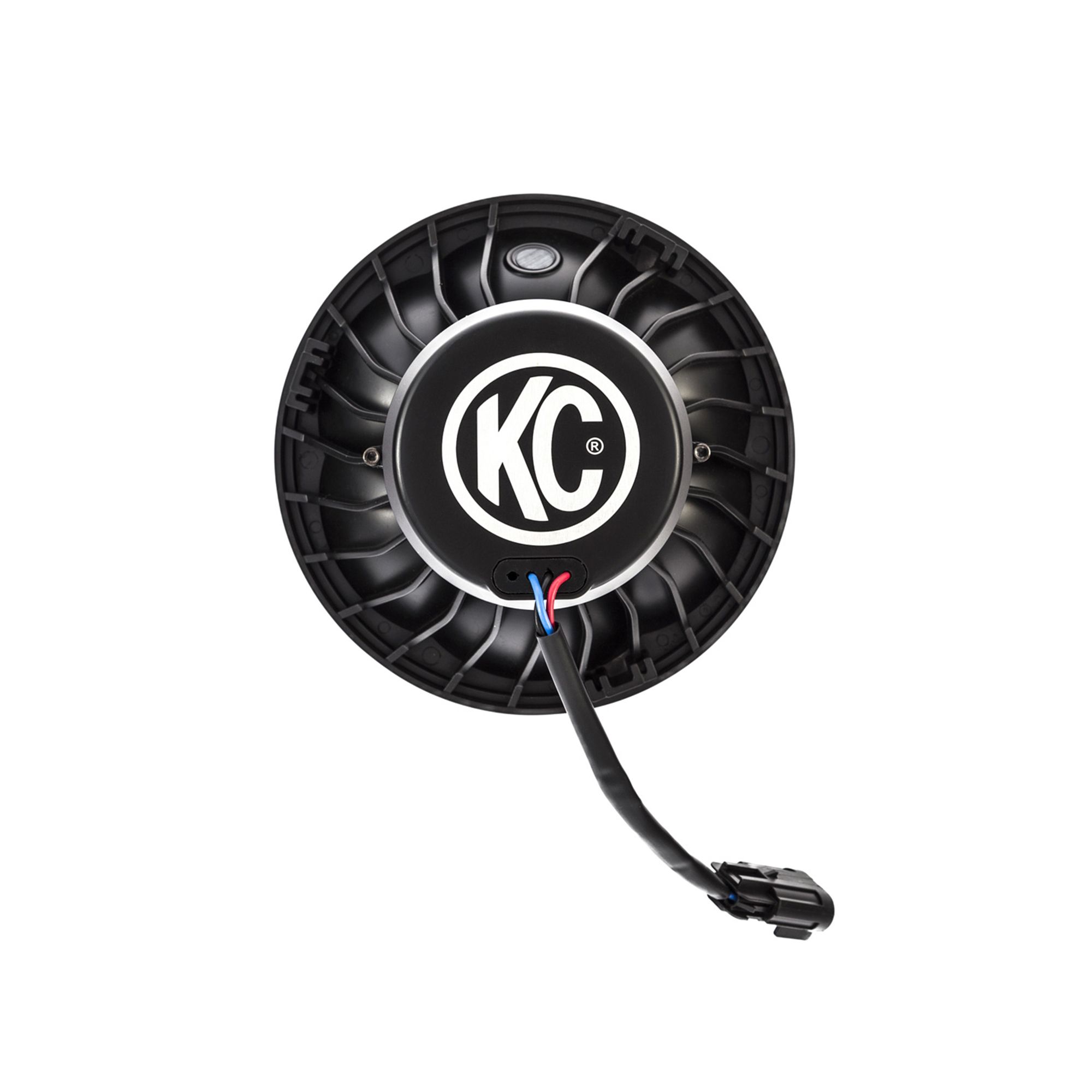

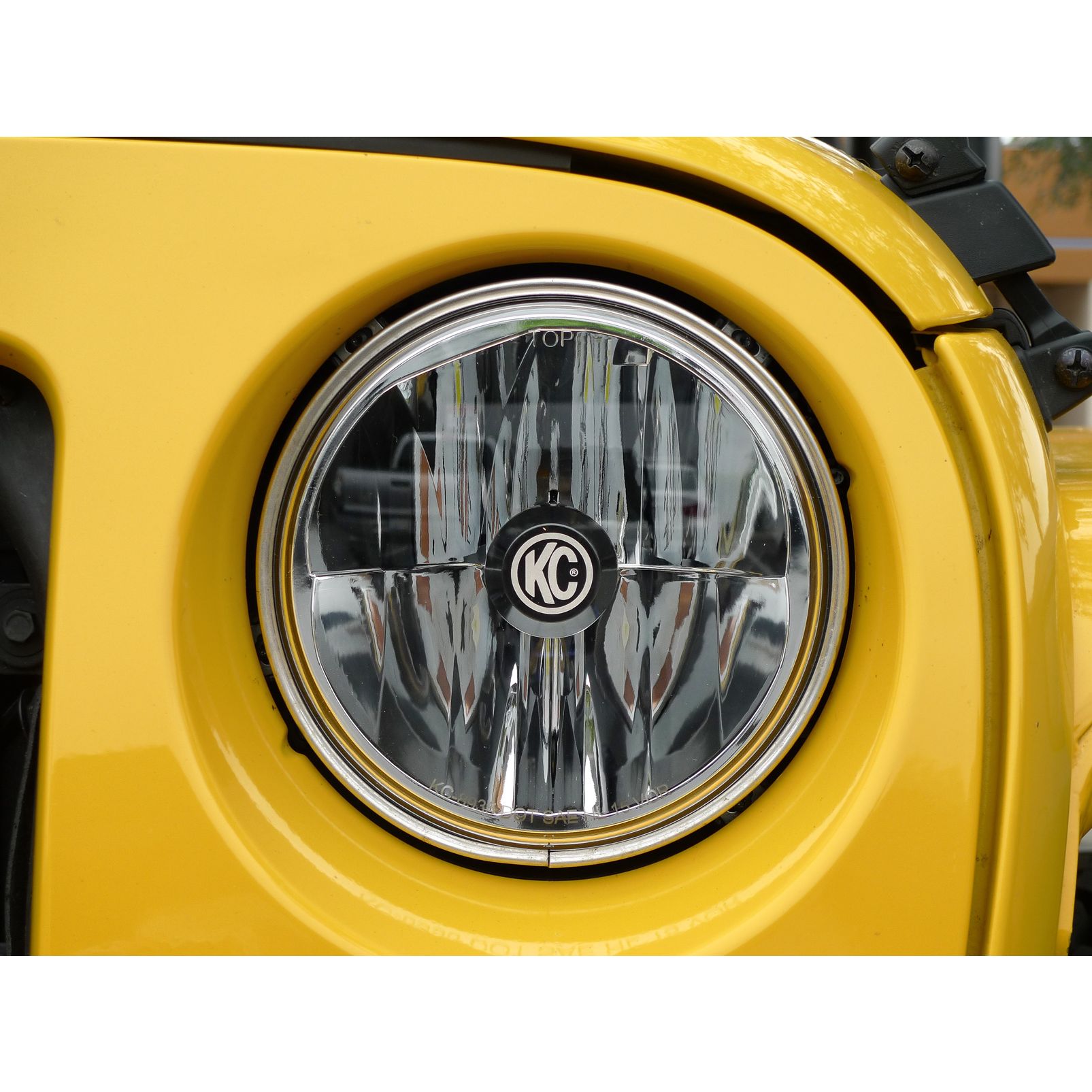

KC Hilites 7 in Gravity LED – Single Headlight – SAE/ECE – 40W Driving Beam – for 07-18 Jeep JK

Gravity(R) LED 7 in Headlights feature KC’s patented Gravity(R) Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.Compliance: D.O.T.D.O.T. Approved Beam3Position OnOffAmber SettingsHard Coated Polycarbonate LensHigh/Low Beam Function KC’s Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights. Surrounding our Gravity(R) LED 7 in Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

Additional Attributes:

GTIN: 00084709042356
Add-On: N/A
Amp Draw: 1.88A
Beam Distance (Meters): Low 407m, High 557m
Beam Pattern: Headlight
Candela: Low- 41,500 Cd, High- 77,500 Cd
Color Temperature: 5000K
Compliance: SAE J851 ECE-R112
IP Rating: IP68
LED Bulb: CREE XHP35 HI and Nichia
LED Source: CREE XHP35 HI and Nichia
Light Temp: 5000K
Lumens: 1260
Lux at 10 Meters: Low 415 lx, High 775 lx
Lux at 10 Meters: Low 415 lx, High 775 lx
Lux: Low- 415, High- 775
Parts Included: Plug-n-Play H13 Connector for Jeep JK
Product Dimensions: W 6.96 in x D 3.72 in
Prop 65 Yes/No: No
Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
Voltage: 9V-18V
Wattage: Low- 18W, High- 22W

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 7.25 x 7.25 x 7 inches
Weight: 3 PG
