SKU: FRDK-K22105T

20-UP JEEP GLADIATOR 2.5″ STAGE 5 SUSPENSION SYSTEM (TUBULAR)

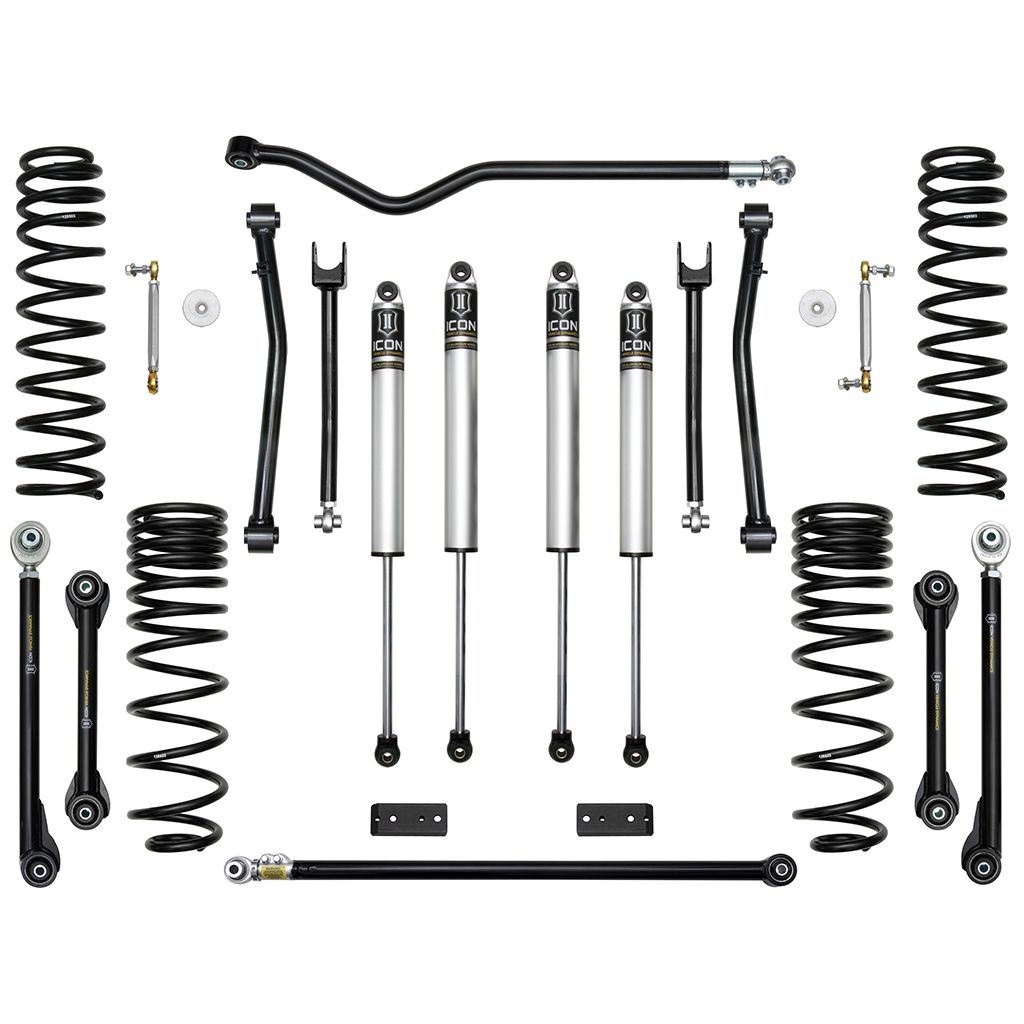

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

Additional Attributes:

GTIN: 00840103415901
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Bushings Included: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 2
Grade Type: Performance
Maximum Lift: 2.5
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ with optional bump stop spacer kit part # 22071)
Recommended Aftermarket Wheels: ICON Alloys | 18×9 w/ 4.5″ Backspace / -12mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
