20-UP JEEP GLADIATOR 2.5″ STAGE 4 SUSPENSION SYSTEM

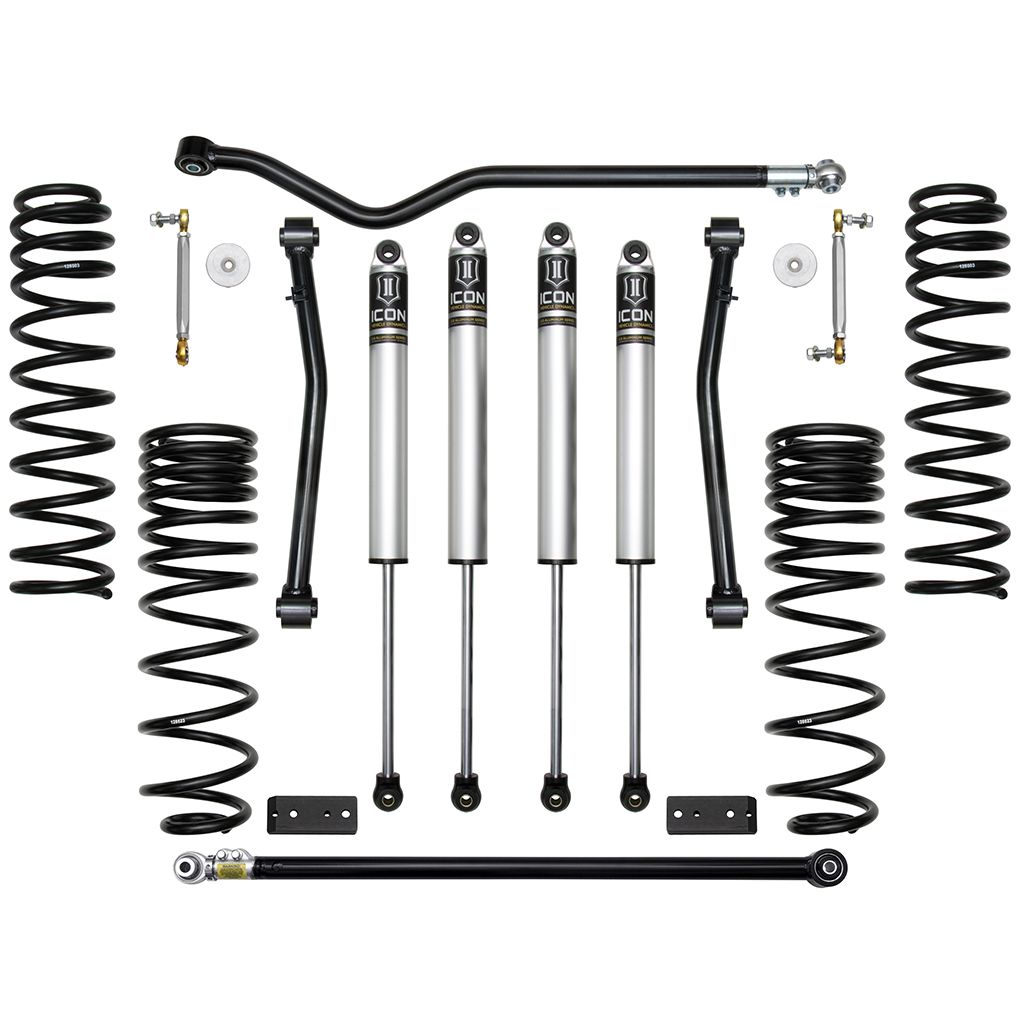

The Stage 4 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving on-road ride quality and overall performance for the daily driven application that will see frequent, moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

Additional Attributes:

GTIN: 00840103415888
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Bushings Included: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 2
Grade Type: Performance
Maximum Lift: 2.5
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ with optional bump stop spacer kit part # 22071)
Recommended Aftermarket Wheels: ICON Alloys | 18×9 w/ 4.5″ Backspace / -12mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Weight:

PDF:

I26527_REVA
